MILL (WITH DRYING OPTION)
PAS (Air-classifier mill)

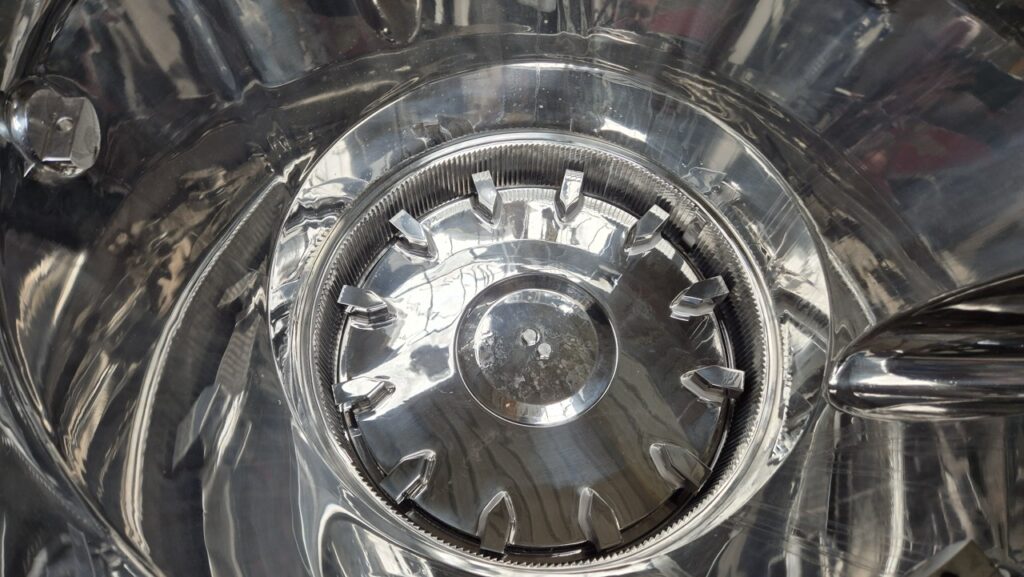

Impact and attrition grinding in a grinding chamber featuring a rotor with grinding tools and a stator with liner. Equipped with a static selector and a dynamic classifier for clean cutting.
AIR-CLASSIFIER MILL
Benefits
Simultaneous grinding-drying process:
the energy produced by grinding is reused to dry the product
Effective with fibrous products:
The attrition milling process is highly effective with rubbers, plastics, food products, cereals or ingredients
Simplified temperature and particle size control:
Combined with a classifier or sifter, the attrition mill can handle a wide range of products, especially heat-sensitive ones. For this purpose, the equipment can be cooled by ambient air or cooled air.
AIR-CLASSIFIER MILL
Operating principle
The P.A.S. air classifier-grinder processes a wide range of products down to a fineness of 99% to 10µm.

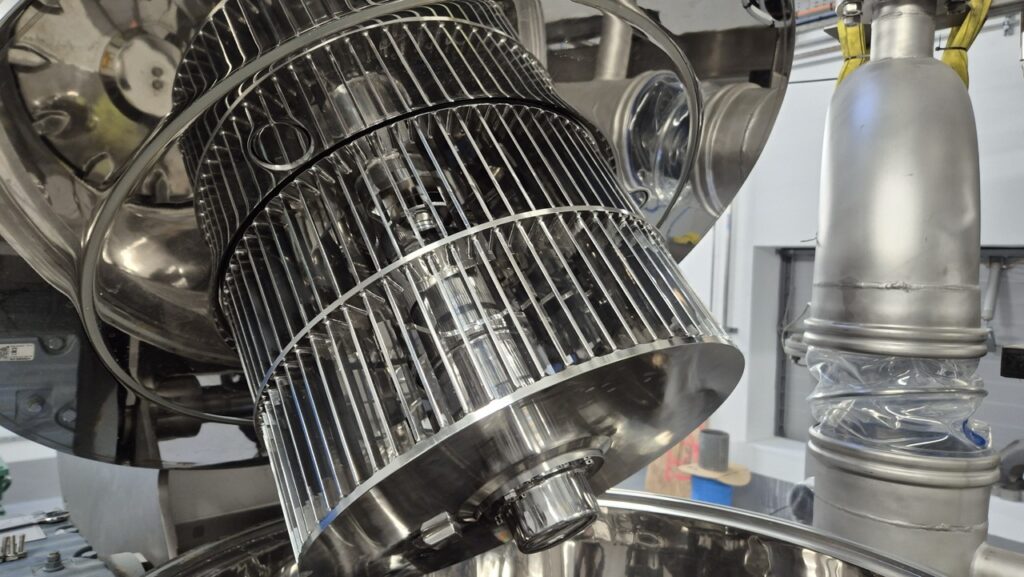

The P.A.S. features an integrated grinding plate and dynamic classifier, driven independently by motors controlled by frequency inverters.

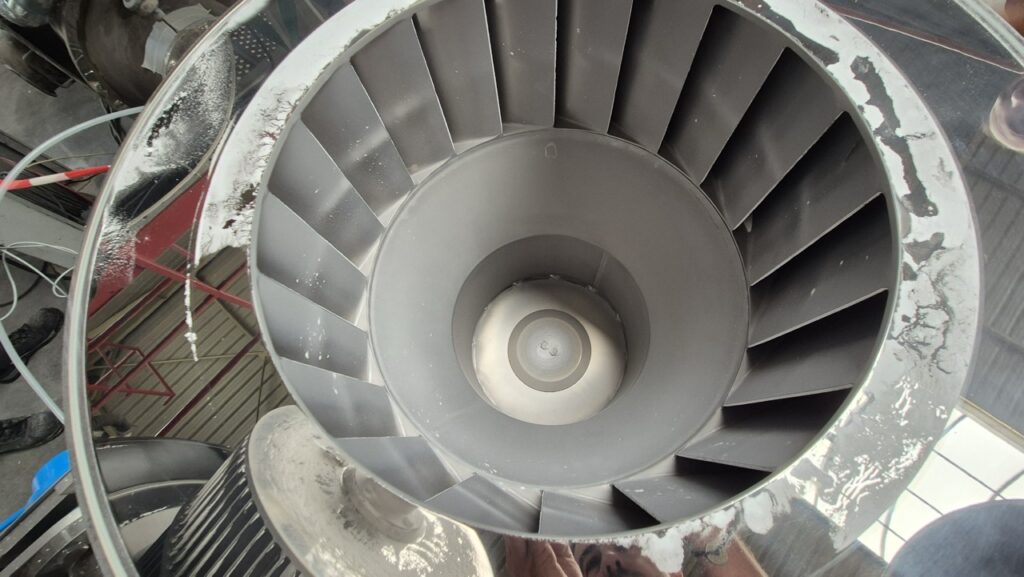

The P.A.S is available in several versions, allowing great flexibility of installation and use. A wide choice of grinding tools (platen, liner), combined with a static classifier and a dynamic variable-speed classifier, guarantees the quality of very fine, perfectly calibrated products, whatever the application.
As an option, the P.A.S. can be equipped with our latest patented technological advances: latest-generation SEALMAX© classifier, OPTICYCLE© internal ultra-fine recycling system.
AIR-CLASSIFIER MILL
Technical data
Fineness
10 microns
Capacity
5kg/h to 5T/h
Throughput
15 tons per hour
Max. humidity
50%
